Mounting Line
実装ライン

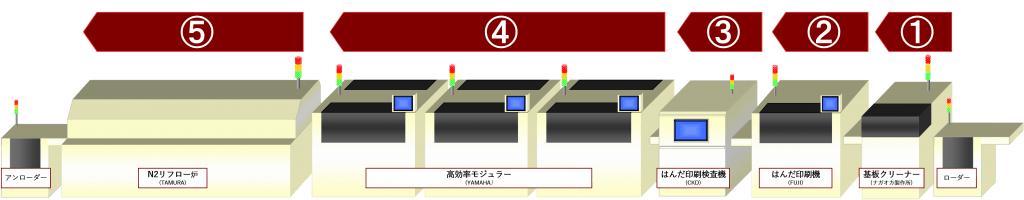

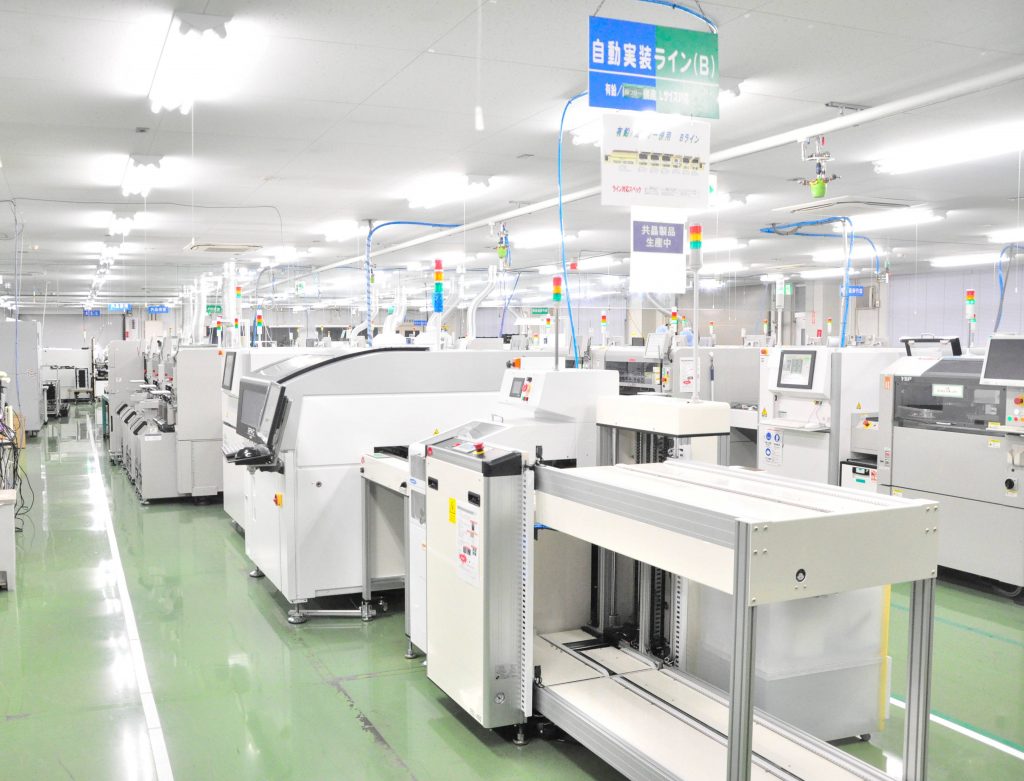

Leaded/Leaded-Free B line
| Board Size | Part Size/Height | Feeder Plate |
|---|---|---|
| Min:L50×W80mm Max:L610×W610mm Thickness:T0.4~8.0mm | Size：0201～ L100×W55mm(Long Connector) Height Max：28mm | 352 ※8mm Feeder Conversion 30Type ※Tray Product |
| Name | Maker | Model | Note |
|---|---|---|---|
| ①Board Cleaner | Nagaoka Seisakusyo | NCS-460 | |
| ②Solder Paste Machine | FUJI | GPX-C | |
| ③Solder Paste Inspection Machine | CKD | VP6000XL-V | |
| ④High-Efficiency Modular | YAMAHA | YSM20WR | 3Unit |
| ⑤N2 Reflow Oven | TAMURA | TCN61-6212EM |

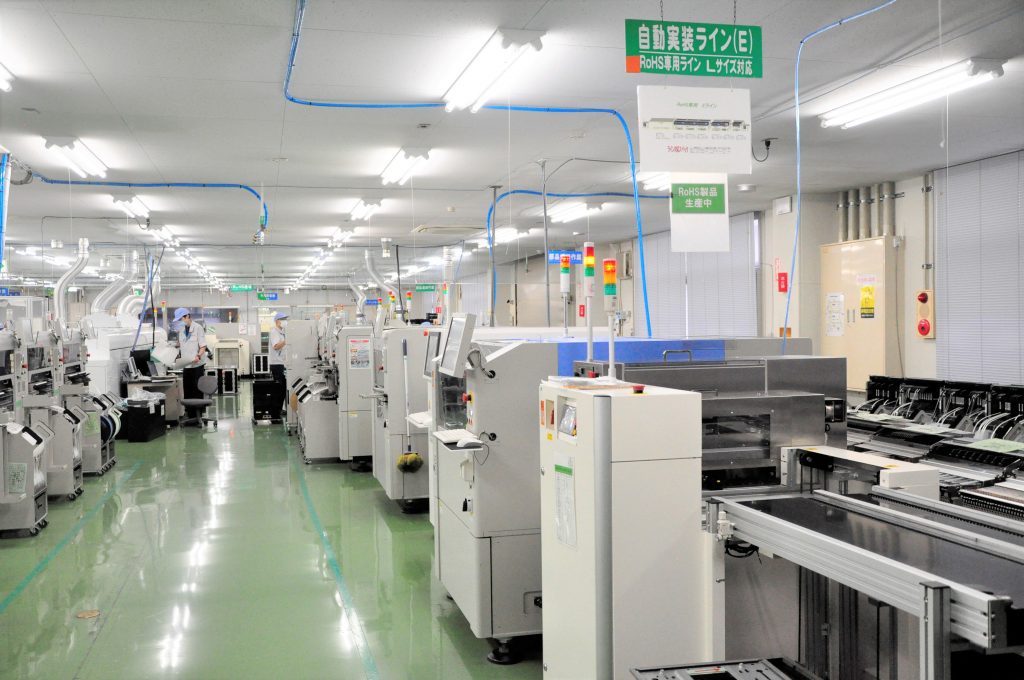

RoHS only E line
| Board Size | Part Size/Height | Feeder Plate |
|---|---|---|
| Min:L50×W50mm Max:L510×W460mm Thickness:T0.4~3.0mm | Size：03015 ～ L100×W55mm(Long Connector) Height Max:28mm | 352 ※8mm Feeder Conversion |
| Name | Maker | Model | Note |
|---|---|---|---|
| ①Board Cleaner | RAYON INDUSTRIAL | RJB-1153 | |
| ②Solder Paste Machine | YAMAHA | YSP | |
| ③Solder Paste Inspection Machine | CKD | VP6000L-V | |
| ④Dispenser | YAMAHA | YSD | |
| ⑤High-Efficiency Modular | YAMAHA | YSM20 | ３Unit |
| ⑥N2 Reflow Oven | TAMURA | TNV-50-7412EMX | 12Zone |

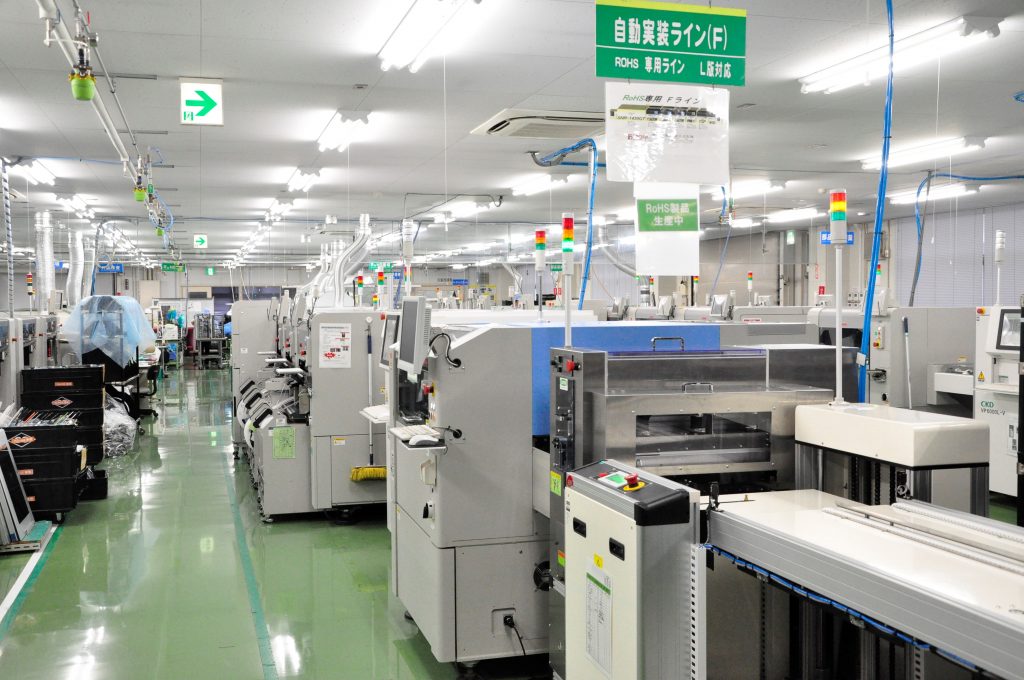

RoHS only F line
| Board Size | Part Size/Height | Feeder Plate |
|---|---|---|
| Min:L50×W50mm Max:L510×W460mm Thickness:T0.4~3.0mm | Size：0201 ～ L100×W55mm(Long Connector) Height Max:28mm | 352 ※8mm Feeder Conversion |
| Name | Maker | Model | Note |
|---|---|---|---|
| ①Board Cleaner | RAYON INDUSTRIAL | RJB-1153 | |
| ②Solder Paste Machine | YAMAHA | YSP | |
| ③Solder Paste Inspection Machine | CKD | VP6000L-V | |
| ④High-Efficiency Modular | YAMAHA | YSM20R | 3Unit |
| ⑤N2 Reflow Oven | SIMC(SENJU METAL INDUSTRY) | SNR-1450GT | 14Zone |

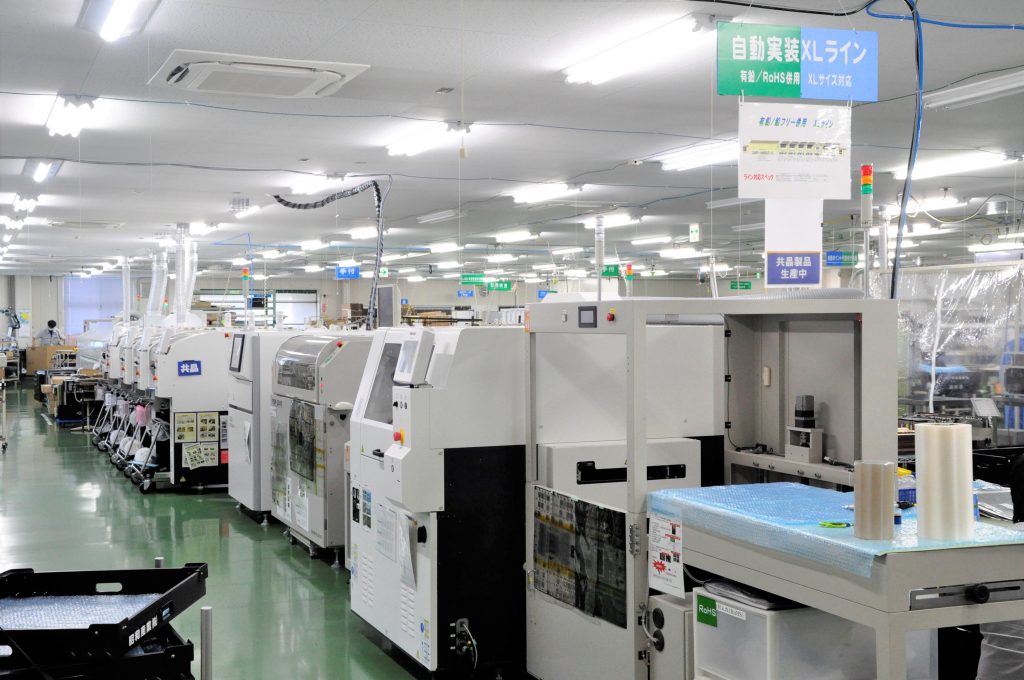

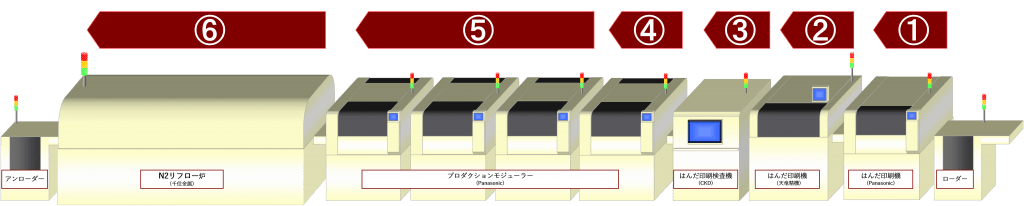

Leaded/Leaded-Free XL line
| Board Size | Part Size/Height | Feeder Plate |
|---|---|---|
| Min:L100×W100mm Max:L750×W550mm Thickness:T0.8~8.0mm | Size：0402 ～ L120×80mm(Long Connector) Height Max:28mm | 446 ※8mm W-Feeder Conversion |
| Name | Maker | Model | Note |
|---|---|---|---|
| ①Solder Paste Machine | Panasonic | SPG | |
| ②Solder Paste Machine | TENRYUSEIKI | TSP-2000 | |
| ③Solder Paste Inspection Machine | CKD | VP6000XL-V | |
| ④Production Modular | Panasonic | NPM-W2 | |
| ⑤Production Modular | Panasonic | NPM-W | 3Unit |
| ⑥N2 Reflow Oven | SIMC(SENJU METAL INDUSTRY) | SNR-1465GT-S | 14Zone |
